HEIDELBERG WEBSITE | OPERATING INSTRUCTIONS | MORE INFORMATION
GENERAL INFORMATION

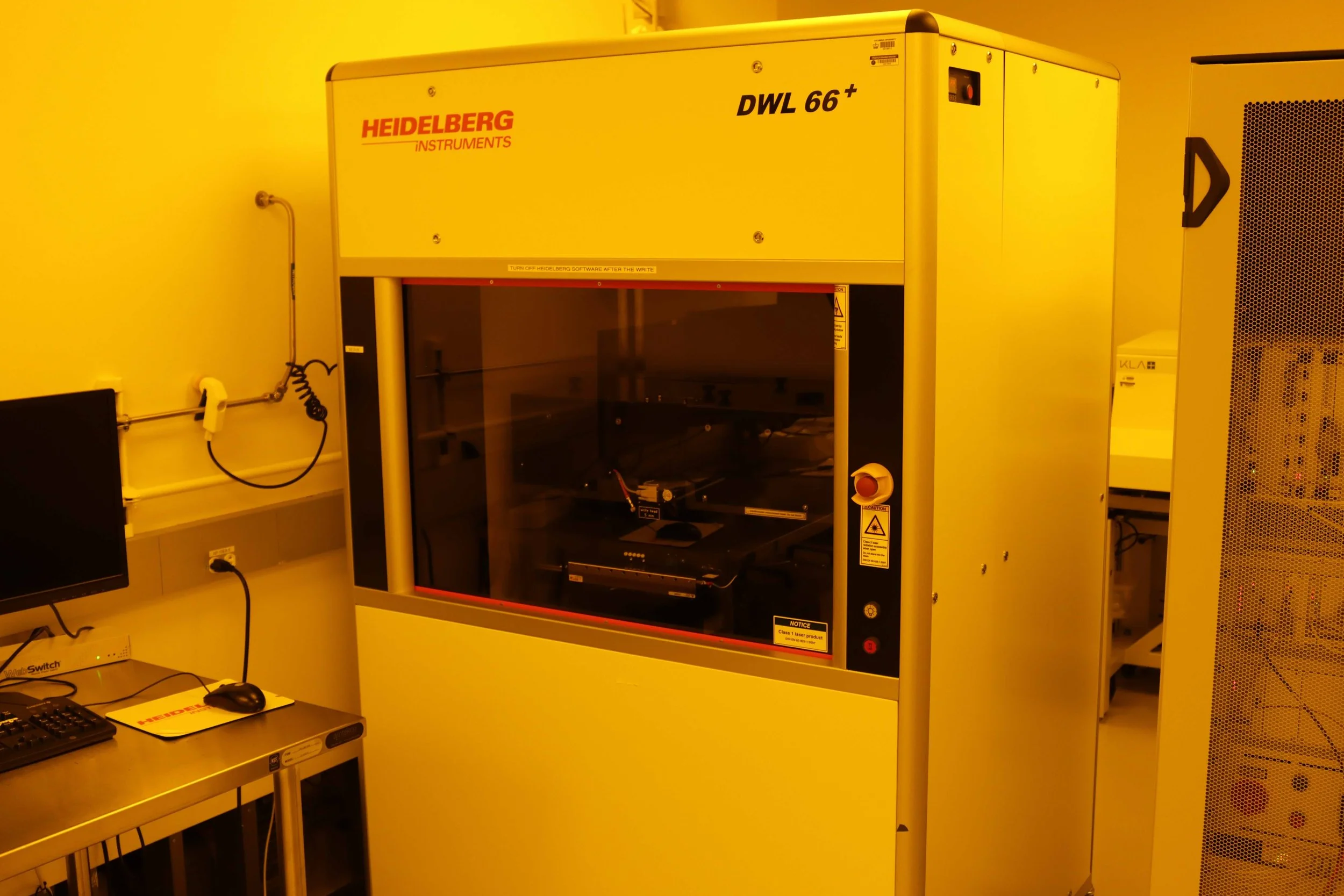

The fully automated DWL 66+ laser writing system is located inside an environment chamber for stable environment of the system with controlled laminar airflow and temperature stability. The chamber is situated on a granite base with air cushions for vibration isolation. The optical system includes highly reflective mirrors and acousto-optic modulators for real-time beam correction. The Laser diode is a 405 nm. Two writing modes are available: Write mode I (min feature size of 0.6 um) and Write mode III (min feature size of 1.0um).
KEY FEATURES AND OPTIONS
Maximum substrate size is 9"x9"
Minimum substrate size 10x10mm2
Maximum write area is 200x 200 mm2
Substrate thickness up to 6mm
Interferometer resolution 10 nm
Minimum feature size is 0.6 um (writing mode I) and 1 um (writing mode III).
Multiple data input formats (DXF, CIF, GDSII and Gerber files)
Camera system with macro and micro automatic alignment and measurement functions
Lithography Materials and Processing Capabilities
The DWL source is a 405 nm laser. To use lithographic direct exposures, the photosensitive coating of the substrates has to be chosen according to the wavelength used and the intended application. Standard substrates for masks are chromium coated plates of float glass or quartz (depending on the requirements concerning temperature stability) with anti-reflection layer (e.g., chromium-oxide), or silica wafers. Standard coated plates can be obtained by contacting the clean room office.
CONTACT INFORMATION
For additional information about the Heidelberg DWL 66+ Laser Writer, please contact the clean room staff at: cniCR@columbia.edu.
