Rigaku XtaLAB Synergy-S

GENERAL INFORMATION

Location: Havemeyer 544

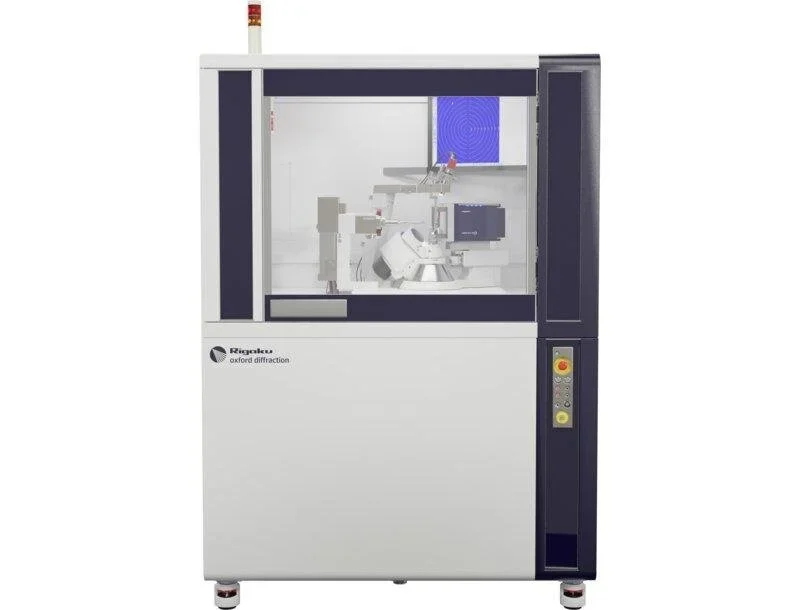

The Rigaku XtaLAB Synergy-S is a single-crystal X-ray diffraction system used for molecular structure determination of crystalline materials. This instrument employs X-ray diffraction to measure the positions of atoms within a crystal lattice, providing complete structural information including bond lengths, bond angles, molecular geometry, and absolute configuration. The Synergy-S is equipped with dual high-brilliance PhotonJet-S microfocus sealed-tube x-ray sources with high precision multilayer mirror focusing optics for Cu and Mo radiation, a high-speed Kappa 4-circle goniometer with telescopic 2-theta arm, a HyPix-ARC 100° Curved Hybrid Photon Counting (HPC) Detector, and integrated CrysAlisPro software platform.

FEATURES:

  • PhotonJet-S Cu & Mo 50W Microfocus X-ray Sources:

    • Sealed tube micro-source with confocal multilayer optics provides high brilliance, high intensity Cu (Mo) x-ray beam with 110 (100) um beam size

    • Motorized Divergence Slit for PhotonJet-S Cu:

      • A motorized, software-controlled, slit for setting the X-ray beam divergence angle between 1 mrad minimum and 9 mrad maximum.

  • HyPix-ARC 100° Curved Hybrid Photon Counting (HPC) Detector

  • Oxford Cryostream 100 Low-Temperature System

    • 80-400K operation with automatic refilling

The system is commonly used for complete structure determination of small organic molecules, organometallic compounds, coordination complexes, metal-organic frameworks (MOFs), and inorganic solids. Applications include confirming the identity and purity of synthesized compounds, studying intermolecular interactions and crystal packing, analyzing polymorphs and solvates, and determining absolute stereochemistry.

Manufacturer information found here.

For more information please contact Dr. Luca Telesca and check out the XRD selection guide..
