GENERAL INFORMATION

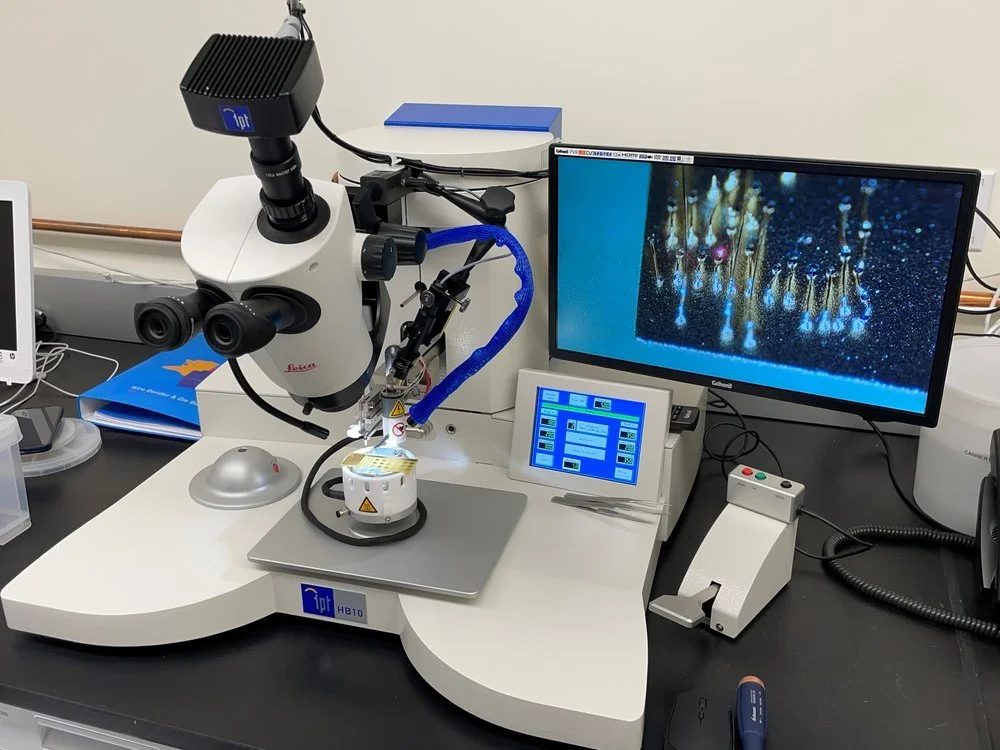

This new semi-auto wire bonder is capable of Ball (15-50um), Wedge (17-75um), Bump, and Ribbon (max 25x250um) Bonding. It has the options of Au, Al, Cu, and Ag wires. The Z-axis is motorized. X-Y are manual.
CONTACT INFORMATION
For additional information about the cleanroom bonders please contact the clean room staff at: cniCR@columbia.edu.
Manual can be found here.
Video for the tool operation, can be found:
